Imported Power Stacker Technical data

Back

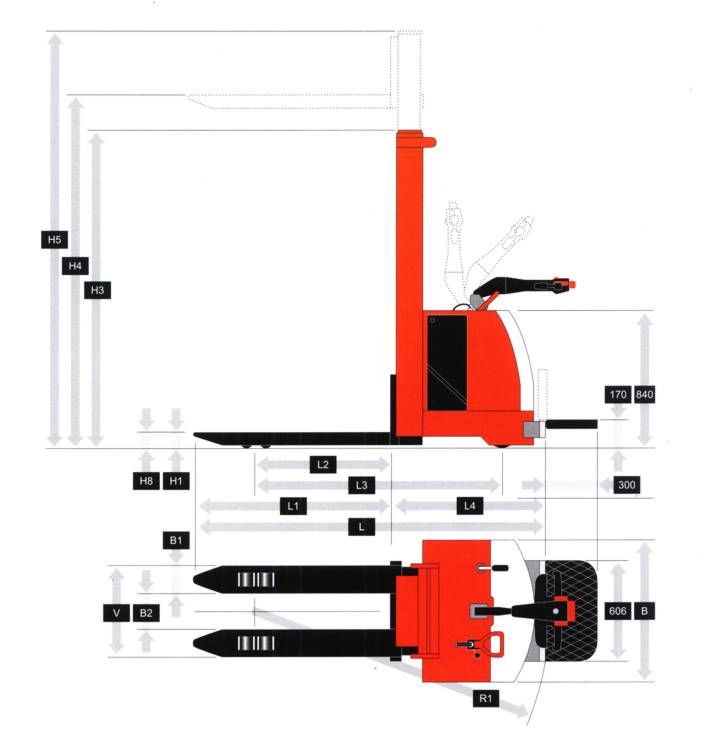

Truck length, with platform - without platform L mm 2004 m2
Truck width B mm 850 850
Fork length L1 mm 1150 1150
Width over forks V mm 520/680 520/680
Distance to retracted fork wheel, with/without platform L4 mm 920/1260 920/1260
Fork arm, width - thickness B1 mm 160 160
Fork height, min. H1 mm 85 85
Straddle height H8 mm 240/420 240/420
Width over straddles   mm 480/620 480/620
Distance between front axle and retracted fork wheel L2 mm 740 740
Axle distance L3 mm 1420 1420
Wheel track, front/rear (centre line wheels)   mm 360/630 360/630
Ground clearance at half axle distance   mm 30 30
Lift capacity Q kg 1200 1200
Load centre C mm 600 600
Lift height H4 mm 3350 2750
Mast height H3/H5 mm 2190/3810 1900/3210
Turning radius R1 mm 2230 2230
Total weight with/without battery   kg 630/760 600/730
